TN Tranflective Custom Small LCD Positive Display Module

Brand Name : bbi

Certification : ISO9001 RoHS

Place of Origin : CHINA

MOQ : 1000

Price : discussable

Payment Terms : T/T

Supply Ability : 100000/monthes

Delivery Time : 3-4weeks

Packaging Details : carton

Resolution : customized

Drive : ST7789V

Voltage : 3.0V

Interface Type : SPI

Storage Temperature : - 10°C to + 60°C

Brightness : 300 cd/m²

Contact Now

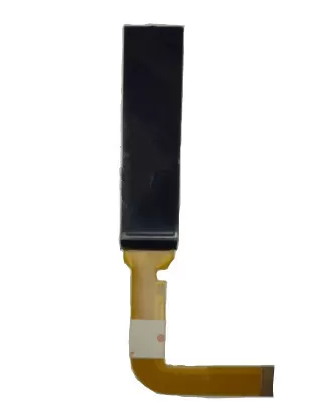

TN Tranflective Custom Small LCD Positive Display Module

Product Details

Type:	Custom Lcd Display
LED:	White LED
Voltage:	3.0V
Connector:	FPC
Driving Method:	1 / 4 Duty , 1 / 3 Bias
Polarizer Type:	Transmissive, Transflective

ITEM	CONTENT	DESCRIPTION
1	Lcd Type	TN Lcd Display
2	Outline Size	55mm ( L ) * 14.6mm ( W ) * 1.1mm T
3	VA Size	50mm ( L ) * 10mm ( W )
4	Viewing Direction	6 O ' clock
5	Voltage	3.0V
6	Display Mode	Positive or Negative
7	Polarizer Mode	Transmissive
8	Operation temp	0°C to + 50°C
9	Storage temp	- 10°C to + 60°C
10	LED Connect	Metal Pin

TN Tranflective Custom Small LCD Positive Display Module

List of Exiting COB LCD Modules:

Model	Content CharsXLines	Module size W x H(mm)	View area W x H(mm)	Dot size W x H(mm)	Character size W x H(mm)	Driving Method	Controller LSI or Equiv	IC Package	STN-TYPE	FSTN-TYPE
8D-C0802A	8X2	84.0X44.0	63.0X25.0	1.15X1.36	6.07X11.56	1/16	S6A0069	COB	Y	Y
8D-C0802B	8X2	58.0X32.0	38.0X16.0	0.56X0.66	2.95X5.56	1/16	S6A0069	COB	Y	Y
8D-C1202A	12X2	55.7X32.0	46.7X17.5	0.45X0.6	2.65X5.5	1/16	S6A0069	COB	Y	Y
8D-C1601A	16X1	80.0X36.0	64.5X13.8	0.55X0.65	3.2X5.95	1/16	S6A0069	COB	Y	Y
8D-C1601B	16X1	122.0X33.0	99.0X13.0	0.92X1.1	4.84X8.06	1/16	S6A0069	COB	Y	Y
8D -C1601C	16X1	80.0X36.0	64.5X13.8	0.6X0.7	3.2X8.2	1/11	S6A0069	COB	Y	Y
8D -C1601D	16X1	85.0X28.0	65.0X16.0	0.55X0.75	3.07X6.56	1/16	S6A0069	COB	Y	Y
8D -C1601E	16X1	80.0X36.0	64.5X13.8	0.55X0.75	3.07X6.56	1/16	S6A0069	COB	Y	Y
8D -C1602A	16X2	80.0X36.0	64.5X13.8	0.55X0.5	2.95X4.35	1/16	S6A0069	COB	Y	Y
8D -C1602B	16X2	122.0X44.0	99.0X24.0	0.92X1.1	4.84X9.66	1/16	S6A0069	COB	Y	Y
8D -C1602C	16X2	80.0X36.0	64.5X15.5	0.55X0.66	2.96X5.56	1/16	S6A0069	COB	Y	Y
8D -C1602D	16X2	84.0X44.0	64.5X15.5	0.55X0.66	2.96X5.56	1/16	S6A0069	COB	Y	Y
8D -C1602E	16X2	85.0X36.0	64.5X15.5	0.56X0.66	2.96X5.56	1/16	S6A0069	COB	Y	Y
8D -C1602F	16X2	72.0X36.0	64.5X15.5	0.56X0.66	2.96X5.56	1/16	S6A0069	COB	Y	Y
8D -C1604A	16X4	87.0X60.0	62.0X25.6	0.55X0.55	2.95X4.75	1/16	S6A0069	COB	Y	Y
8D -C2001A	20X1	116.0X37.0	83.0X18.6	0.6X0.65	3.2X5.55	1/16	S6A0069	COB	Y	Y
8D -C2002A	20X2	98.0X60.0	83.0X18.6	0.6X0.65	3.2X5.55	1/16	S6A0069	COB	Y	Y
8D -C2002B	20X2	116.0X37.0	83.0X18.6	0.6X0.65	3.2X5.55	1/16	S6A0069	COB	Y	Y
8D -C200C	20X2	146.0X43.0	123.0X23.0	0.92X1.1	0.98X1.17	1/16	S6A0069	COB	Y	Y

List of Exiting COB LCD Modules:

Model	Content (W X H)	Module size W x H(mm)	View area W x H(mm)	Dot size W x H(mm)	Dot pitch W x H(mm)	Driving Method	Controller LSI or Equiv	IC Package	STN-TYPE	FSTN-TYPE
8D -C2004A	20X4	98.0X60.0	76.0X25.2	0.55X0.55	2.95X4.75	1/16	S6A0069	COB	Y	Y
8D -C2004B	20X4	77.0X47.0	60.0X22.0	0.42X0.46	2.3X4.03	1/16	S6A0070	COB	Y	Y
8D -C2004C	20X4	146.0X62.5	123.5X43.0	0.92X1.1	4.84X9.22	1/16	S6A0069	COB	Y	Y
8D -C2402A	24X2	118.0X36.0	93.5X16.0	0.6X0.65	3.2X5.55	1/16	S6A0069	COB	Y	Y
8D -C2402B	24X2	208.0X40.0	178.0X23.0	1.16X1.16	6.0X9.63	1/16	S6A0069	COB	Y	Y
8D -C4001A	40X1	182.0X33.5	154.4X16.5	0.6X0.75	3.2X6.35	1/16	S6A0069	COB	Y	Y
8D -C4002B	40X2	182.0X33.5	154.4X16.5	0.6X0.65	3.2X5.55	1/16	S6A0069	COB	Y	Y
8D C4004A	40X4	190.0X54.0	147.0X29.5	0.5X0.55	2.78X4.89	1/16	S6A0069	COB	Y	Y
8D -G12232A	122X32	84.0X44.0	60.0X18.5	0.4X0.4	0.44X0.44	1/32	SED1520	COB	Y	Y
8D -G12232B	122X32	80.0X36.0	55.0X18.5	0.36X0.41	0.4X0.45	1/32	SED1520	COB	Y	Y
8D -G12232C	122X32	98.0X60.0	76.0X25.2	0.53X0.61	0.57X0.65	1/32	SED1520	COB	Y	Y
8D -G12232D	122X32	80.2X47.4	76.0X25.2	0.53X0.61	0.57X0.65	1/32	SED1520	COB	Y	Y
8D -G12864A	128X64	78.0X70.0	62.0X44.0	0.39X0.55	0.44X0.6	1/64	S6B0108A	COB	Y	Y
8D -G12864B	128X64	105.0X60.5	72.0X40.0	0.48X0.48	0.52X0.52	1/64	S6B0108A	COB	Y	Y
8D -G12864C	128X64	93.0X70.0	72.0X40.0	0.48X0.48	0.52X0.52	1/64	S6B0108A	COB	Y	Y
8D -G12864D	128X64	113.0X65.0	72.0X40.0	0.48X0.48	0.52X0.52	1/64	S6B0108A	COB	Y	Y
8D -G12864E	128X64	93.0X70.0	72.0X40.0	0.48X0.48	0.52X0.52	1/64	ST7920	COB	Y	Y
8D -G19264A	192X64	130X65.0	104.0X39.0	0.46X0.46	0.51X0.51	1/64	S6B0108A	COB	Y	Y
8D -G19264B	192X64	120X62.0	104.0X39.0	0.46X0.46	0.51X0.51	1/64	S6B0108A	COB	Y	Y
8D -G24064B	240X64	180.0X65.0	132.0X39.0	0.53X0.53	0.49X0.49	1/64	T6963C	QFP/COB	Y	Y
8D -G240128A	240X128	144X104	114X64	0.4X0.4	0.45X045	1/128	T6963C	QFP/COB	Y	Y
